Vertical Form Fill Seal (VFFS) Packaging Machine
Home • Machines • VFFS Packaging Machine
Fodapack’s Vertical Form Fill Seal (VFFS) packaging machine is engineered for high-speed, heavy-duty bagging across food, pharmaceutical, agricultural, and chemical sectors. Utilizing flat roll stock film, the machine continuously forms, fills, and hermetically seals flexible pouches with exceptional weight accuracy and minimal film waste.
Built with robust food-grade Stainless Steel SUS304 structural frames and premium brand components (including Siemens PLC touchscreens, Schneider electricals, and Omron PID temperature controllers), our VFFS systems run at speeds up to 100 packages per minute under 24/7 continuous production regimes.
Whether you require pillow bags for bulk coffee, gusseted pouches for snacks, or quad-seal stand-up bags for premium pet foods, Fodapack custom-configures every line to your exact pouch dimensions and speed requirements.
Standard engineering benchmarks for Fodapack automatic VFFS packaging series. Custom modifications are available upon client engineering review.
| Specification Parameter | VFFS-420 Series | VFFS-520 Series | VFFS-720 Heavy-Duty |
|---|---|---|---|
| Packing Speed | 20 – 90 bags / min | 15 – 70 bags / min | 10 – 50 bags / min |
| Bag Width Range | 60 mm – 200 mm | 80 mm – 250 mm | 150 mm – 350 mm |
| Bag Length Range | 80 mm – 300 mm | 100 mm – 400 mm | 150 mm – 500 mm |
| Max Film Width | 420 mm | 520 mm | 720 mm |
| Film Roll Outer Diameter | Max 400 mm | Max 400 mm | Max 450 mm |
| Dosing Compatibility | Multihead Weigher, Auger Filler, Volumetric Cups, Liquid Piston Pump | ||
| Control System | Siemens / Mitsubishi PLC with 7-Inch Color HMI Touch Interface | ||
| Drive Mechanism | Dual Servo Motor Film Pulling System & Pneumatic End Sealing | ||
| Material Construction | Full SUS304 Stainless Steel Frame & Product Contact Components | ||
| Air Consumption & Power | 0.6 Mpa, 0.4 m³/min | 3.0 kW | 0.6 Mpa, 0.5 m³/min | 4.5 kW | 0.7 Mpa, 0.6 m³/min | 6.5 kW |
Our VFFS mainframes seamlessly couple with four specialized dosing heads to package granules, powders, liquids, and solid parts with high accuracy.

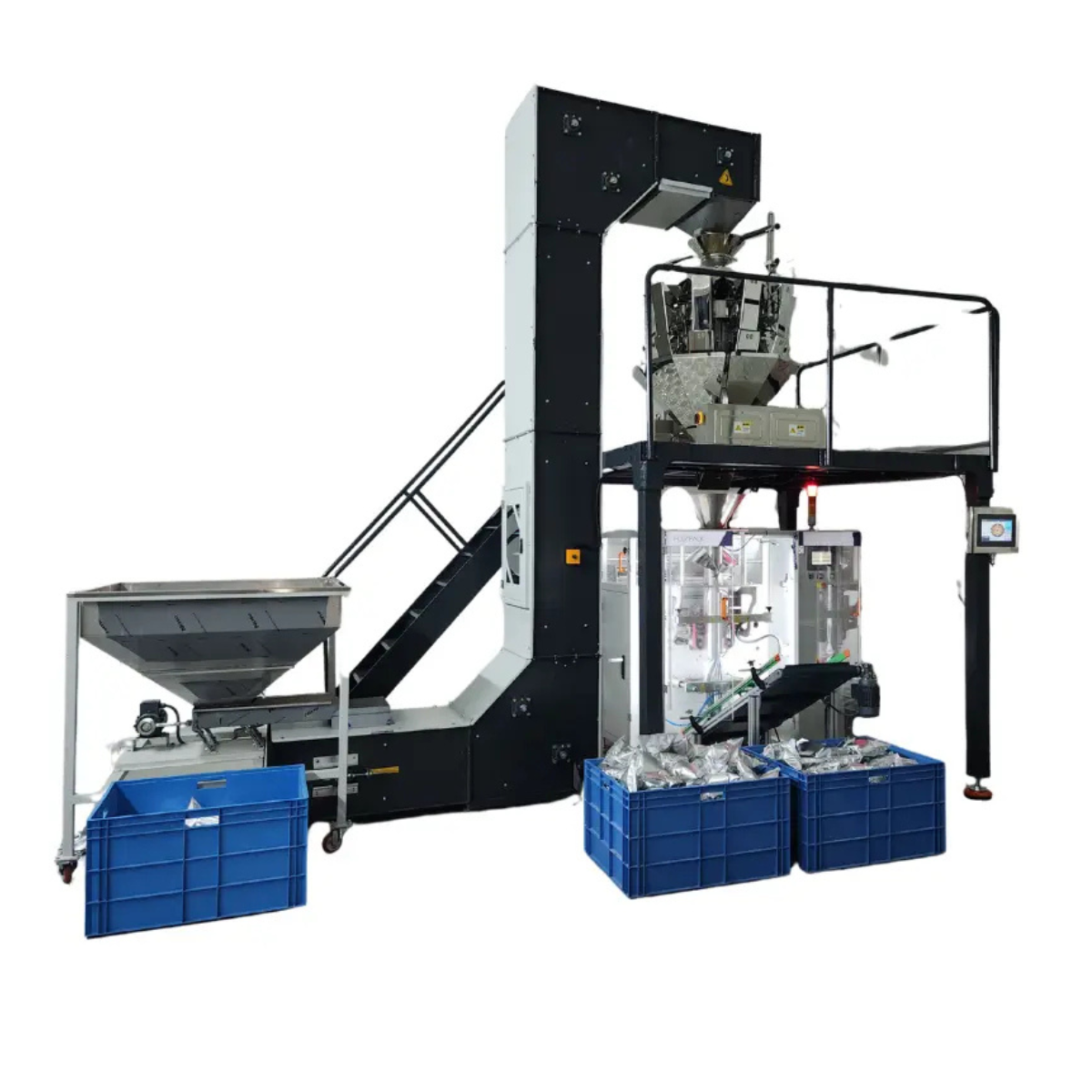

10, 14, or 24 head high-precision combination weighers. Designed for potato chips, nuts, dried fruits, frozen foods, candies, and hardware parts requiring gram-level weight accuracy.
Servo-driven auger screw dosing unit with dust-collection hoods. Perfect for fine powders including coffee flour, milk powder, spices, starch, protein powder, and chemical reagents.
Telescopic volumetric measuring cup system. High-speed economical solution for free-flowing small granules such as white sugar, table salt, rice, seeds, and detergent granules.
Pneumatic and servo piston dosing units fitted with heated jacketed hoppers and anti-drip nozzles. Suitable for tomato paste, sauces, edible oil, ketchup, liquid soap, and creams.
By swapping forming collar assemblies, Fodapack VFFS machinery creates diverse retail and wholesale bag formats.
Classic 3-side sealed pillow format ideal for retail snacks, coffee, and bulk dry ingredients.
Expanded side gussets allow pouches to stand upright cleanly on supermarket shelves.
Four corner vertical edge seals offering superior rigidity and premium visual presentation.
Euro-slot, round handle hole punching and linked chain-bag cutting options available.
Built with 28+ years of dedicated machinery R&D to optimize shelf life, reduce operational downtime, and meet stringent HACCP hygiene regulations.
Twin servo-driven friction belts provide smooth film registration without slippage, keeping bag length dimensions precise to ±0.5mm.
High-sensitivity Sick or Banner optical registration sensor automatically detects print mark indicators to ensure precise cut positioning every cycle.
Optional Modified Atmosphere Packaging (MAP) flushing system replaces oxygen with nitrogen to dramatically extend product shelf freshness.
Seamless bag size conversion in under 10 minutes using quick-release forming shoulder assemblies without needing specialized tools.
Separate digital temperature controllers manage horizontal and vertical sealing jaws, compatible with Laminated, PE, and Foil roll films.
Built-in Ethernet/Wi-Fi PLC module allows Fodapack engineers to troubleshoot software settings remotely anywhere in the world.
Clear responses to common technical and commercial queries from international plant managers and procurement officers.
Contact Fodapack's senior engineering team to receive a detailed engineering proposal, machine layout drawing, and direct factory price quote within 24 hours.
