High-Performance Linear Bottling & Packaging Machinery
Explore our industrial-grade linear filling lines engineered for water, juices, oils, sauces, cosmetics, personal care liquids, and agrochemicals.

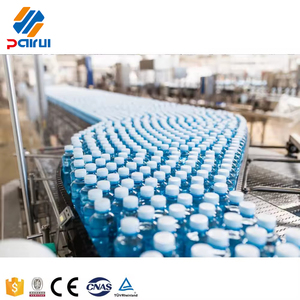

High Speed Drinking Water Filling Machine Full Automatic Bottle Washing Filling Capping Labeling Bottling Line

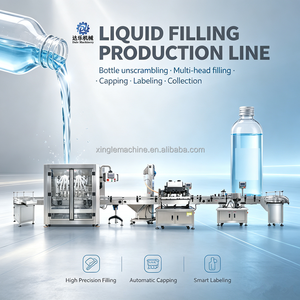

Customized Linear 500ml Bottle Oil Fruit Juice Beverage 8 10 Heads Fully Automatic Bottled Liquid Filling Production Line

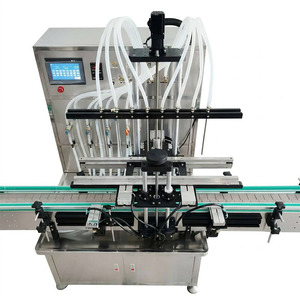

Zhongjie Industrial Linear 8-Head Liquid Filling Line with PLC Control for 20-100mm Bottles Sealing System

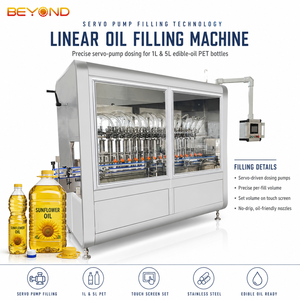

Automatic 1L Plastic Bottle Edible Oil Filling Line Linear Filling And Capping Machine

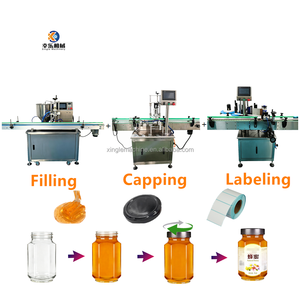

Automatic Linear Quantitative Single Head Liquid Paste 250ml 500ml Bottle Honey Filling Capping and Labeling Machine Line

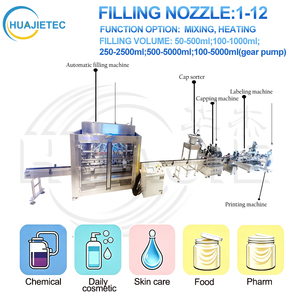

HUAJIE Linear Automatic 4 8 10 Heads Piston Bottle Viscous Liquid Filling Machine Line Shampoo Bottle Filling Machine

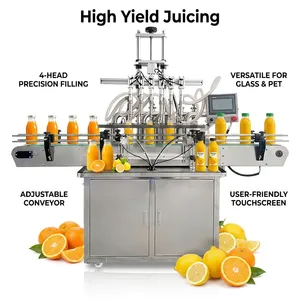

Automatic Juice Beverage Filling Machine 4-Head Linear Liquid Bottling Equipment for Fresh Orange Juice

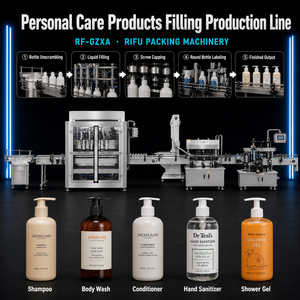

Automatic Linear Type Multi-Head Servo Liquid Soap Shampoo Detergent Filling Capping Labeling Machine Line
1. Architectural Engineering of Modern Linear Bottle Filling Lines
In high-speed liquid packaging environments, select engineering choices dictate total cost of ownership (TCO), operational agility, and line efficiency. A Linear Bottle Filling Line represents a modular, scalable, and highly adaptable architecture compared to traditional rotary monoblock systems. While rotary systems excel at dedicated, high-speed single-format beverage production, linear bottle filling machinery offers unmatched flexibility for multi-SKU facilities handling diverse liquid viscosities, varied container profiles, and rapid batch changeovers.
At the core of an advanced linear filling system lies the volumetric dosing engine. Modern OEM/ODM linear filling lines utilize individual servo motor control per filling head. By decoupling the mechanical linkage found in legacy pneumatic piston systems, servo-driven linear fillers allow operators to program digital stroke profiles via an intuitive Touchscreen HMI. This micro-metric displacement precision ensures filling accuracy within ±0.2% to ±0.5%, virtually eliminating product giveaway during high-volume production runs of edible oils, personal care serums, pharmaceutical reagents, and household detergents.
Servo-Driven Volumetric Metering
Independent servo motors drive each piston cylinder or peristaltic/flowmeter channel, enabling customized fill profiles (fast-slow-fast filling) to completely eliminate splashing and foaming in surfactant-rich liquids.
Sub-Surface Diving Nozzles
Pneumatic or servo-driven bottom-up filling nozzles lower to the bottom of the container before dosing, maintaining nozzle orifice submergence below the rising liquid level to eliminate aeration and micro-foaming.
Hygienic Clean-In-Place (CIP)
Designed with sanitary 316L stainless steel contact parts, tri-clamp quick-release fittings, and automated CIP manifold recycling circuits to perform full sanitization cycles without requiring mechanical teardown.
Linear vs. Rotary Bottle Filling System Architecture Matrix
When selecting packaging machinery, plant managers must balance throughput requirements against line versatility and changeover downtime. Below is an engineering comparison detailing why linear bottling lines are the preferred capital equipment investment for contract packagers and multi-product manufacturers:
| Engineering Evaluation Criteria | Linear Bottle Filling Line | Rotary Monoblock Filling System | Procurement Strategic Advantage |
|---|---|---|---|
| Container Compatibility | Universal Round, oval, square, rectangular, flat bottles | Requires custom starwheels and neck guides for each format | Linear eliminates expensive format changeover tooling costs |
| Viscosity Adaptability | Thin liquids (water) up to thick pastes (100,000+ cPs honey) | Optimized primarily for low-to-medium viscosity fluids | Linear supports broader product portfolios on a single machine |
| Changeover Downtime | 10 - 20 minutes (Toolless quick-adjust guide rails) | 2 to 4 hours (Complex starwheel & turret swapping) | Dramatically higher overall equipment effectiveness (OEE) |
| Modular Expansion | Scalable head count (e.g., expand from 4 to 8 or 12 nozzles) | Fixed pitch radius; non-expandable head frame | Lower initial CapEx with scalable future capacity expansion |
| Maintenance & TCO | Simplified maintenance, standardized off-the-shelf spares | Complex internal gearboxes & specialized rotary unions | Significantly reduced long-term maintenance overhead |
Future Procurement & Technology Trends in Linear Bottling
Market intelligence and technological breakthroughs shaping global machinery purchasing decisions over the next decade.
Mass Flowmeter Dosing (Coriolis & Electromagnetic)
Procurement is shifting rapidly from mechanical piston displacement toward contactless Mass Flowmeter filling. Coriolis mass flowmeters measure liquid density and mass flow rate in real time, automatically compensating for thermal expansion and ambient temperature fluctuations without requiring mechanical recalibration. This technology is vital for chemical and lube oil bottlers where liquid density varies throughout operational shifts.
Edge Computing & IoT Predictive Maintenance
Smart linear filling production lines now integrate OPC-UA and MQTT communication protocols directly into Siemens or Allen-Bradley PLCs. Real-time telemetry tracks servo motor vibration, pneumatic pressure drops, solenoid cycle counts, and valve response times. Plant managers receive automated predictive alerts before seal degradation causes liquid leaks, raising operational uptime past 98.5%.
Sustainable Packaging & Monomaterial PCR Compatibility
With global ESG mandates pushing consumer packaged goods (CPG) companies toward lightweighted PET, 100% post-consumer recycled (PCR) plastics, and aluminum bottles, linear packaging machinery must feature sensitive bottle-clamping mechanics. Modern servo cappers incorporate magnetic or servo-controlled torque feedback to prevent wall collapse or thread stripping on ultra-thin eco-bottles.
Toolless Modular Recipe Management
Modern packaging lines store up to 500 product parameters in local memory. When switching from a 250ml shampoo bottle to a 1-Liter body wash container, motorized conveyor guide rails, digital position indicators, and automated nozzle height positioning adjust at the touch of a button, compressing traditional 90-minute changeovers down to less than 5 minutes.
Why Partner with Us for Your OEM/ODM Filling Line Projects
Combining 28+ years of packaging machinery manufacturing expertise with international quality engineering.
Direct Factory Manufacturing (Since 1996)
We are a direct equipment manufacturer and exporter, operating certified production facilities. Every machine frame, shaft, and manifold is CNC machined in-house to maintain strict quality control without third-party markup.
CE & ISO Quality Certification
Our complete machinery portfolio holds full CE certification in compliance with European Machinery Directive 2006/42/EC. We adhere rigorously to ISO 9001:2015 quality management and ISO 14001 environmental standards.
Global Turnkey Engineering (50+ Countries)
With operational bottling and packaging lines across 50+ countries, our senior automation engineers provide full factory acceptance testing (FAT), international shipping logistics, on-site installation, and technician training.
Full OEM/ODM Customization
From explosive-proof (ATEX-certified) electrical cabinets for solvent handling to specialized corrosion-resistant titanium pump heads for acidic chemicals, we engineer bespoke turnkey lines configured to your exact plant constraints.
2-Year Warranty & Lifetime Support
Every linear bottling line leaves our factory backed by a comprehensive 2-year warranty on major components, 24/7 remote diagnostic support, and guaranteed spare parts dispatch within 48 hours.
Comprehensive Operator Training
Our certified commissioning technicians deliver detailed on-site training covering routine preventive maintenance, calibration procedures, recipe setup, and safety protocols to empower your internal staff.
Frequently Asked Questions for Bottling Equipment Buyers
Technical guidance and sourcing solutions to assist procurement teams during machinery evaluation.
How do I determine whether my application requires a Servo Piston, Flowmeter, or Peristaltic filling line?
The choice depends on product viscosity, chemical compatibility, and hygiene requirements. Servo Piston fillers are best for high-viscosity liquids containing particulates, such as honey, tomato paste, shampoos, and heavy creams. Flowmeter fillers (Magnetic or Mass Flow) are recommended for free-flowing to medium-viscosity conductive or non-conductive liquids (juices, lubricants, edible oils) where zero contact parts and fast CIP cycles are required. Peristaltic fillers are ideal for ultra-sterile pharmaceutical or biological solutions where fluid touches only disposable silicone tubing.
What filling accuracy can I expect across different container volumes?
Our linear filling machines maintain a dosing accuracy of ±0.2% to ±0.5%. For standard 500ml and 1-Liter liquid containers, the fill weight variation is typically within ±1 to 2 grams under steady temperature conditions. Servo-controlled dosing allows micro-adjustments directly from the HMI screen without shutting down the production conveyor.
Can a single linear filling line handle multiple bottle shapes and sizes?
Yes. Linear bottle filling machines are engineered specifically for multi-SKU flexibility. By utilizing toolless adjustable conveyor guide rails and digital position counters, operators can adjust the line for bottle volumes ranging from 50ml up to 5,000ml (5 Liters) without changing expensive change parts like starwheels.
How does the linear capping machine accommodate various cap styles (screw caps, press-on, pump sprayers, trigger caps)?
We configure integrated linear capping systems according to your cap geometry. Standard screw caps utilize multi-wheel rotary rubber disc cappers or servo magnetic torque heads. For complex closures such as trigger sprayers or pump dispensers, we supply automated cap sorters, orienting chutes, and robotic pick-and-place placement heads to ensure accurate thread engagement and precise torque application.
What are the lead times for custom OEM/ODM linear bottling production lines?
Standard linear filling machinery models (4 to 8 heads) typically ship within 30 to 45 business days following final engineering drawing sign-off and container sample testing. Fully customized turnkey OEM/ODM production lines incorporating automated bottle unscramblers, filling, capping, induction sealing, labeling, and case packing are delivered within 60 to 75 business days.
What warranty coverage, installation, and spare parts support are provided?
All packaging machinery manufactured by our facility includes a 2-Year Comprehensive Factory Warranty covering mechanical parts and electrical components. We provide international factory acceptance testing (FAT) via live video or in-person visits, followed by on-site installation, commissioning, and operator training by our senior technicians anywhere worldwide.
Accelerate Your Bottling Line Efficiency Today
Work directly with our senior machinery engineering team to design, build, and deploy a custom linear bottle filling line tailored precisely to your product viscosity, speed targets, and facility layout.
